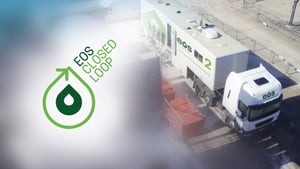

EOS-Closed-Loop_Electrical_Oil_Services-EOS_NEW-TransVac-on-site-edited-Sep-12-2022-12-27-59-86-PM_2500x1409px_231120

EOS® CLOSED LOOP MODEL

For a modern circular economy

RECYCLING & RE-USE OF TRANSFORMER OIL –
TOGETHER FOR A SUSTAINABLE FUTURE

Energy suppliers as well as large and small energy consumers recognise transformer oil as a resource worth recycling.
That's why Electrical Oil Services collects used insulating oil, recycles it and returns it to the cycle in like-new condition.





We call this reuse on a sustainable basis the EOS® Closed Loop Model.

Electrical Oil Services offers the Closed Loop model already successfully in Europe. Based on this model, we have developed the regenerated insulating oil EOS® Premium, which fully complies with the requirements of the international standard IEC 60296:2020 for mineral insulating oils for electrical equipment.

EOS® Premium is your high-quality recycled transformer oil.



CIRCULAR ECONOMY

BENEFIT FROM THE EOS® CLOSED LOOP MODEL

The EOS® Closed Loop model is an excellent recycling solution. Once recycled, customers will receive a premium product in as-new quality - fully compliant to IEC 60296:2020.
Be part of the cirular economy and reduce your dependence on oil imports and corresponding price fluctuations with the EOS® Closed Loop solution:

1
Cost control

Leverage cost advantages versus an oil replacement and enjoy an enhanced pricing stability.

2
Security of supply

Benefit from our supply security through the use of existing inventory and local resources.

3
Sustainabilty goals

Retain and re-use precious natural resources and contribute to a sustainable energy supply.

Talk to our experts.

Schedule your individual consultation now!

HOW TO REDUCE YOUR CO2 FOOTPRINT
AND CONTRIBUTE TO THE CIRCULAR ECONOMY

Transformers ensure that the power generated is fed into the power grid with the proper voltage. To be able to perform this task it is important to maintain the high quality of the insulating oil used. In service, however, mineral oil degrades due to the conditions of use. The inhibitors become depleted and the measured acidity in the oil begins to increase. Electrical Oil Services  reprocesses your used transformer oil to as-new quality by removing ageing products such as peroxides, acids, DBDS and sludge from the insulating oil. This process can be completed mobile or stationary:

TOUCH
Mobile oil regeneration directly at the transformers site
Mobile oil regeneration directly at the transformers site

The mobile process takes place at the transformer site. It also goes one step further than pure oil replacement, because mobile oil regeneration treats the entire insulation system of your transformers, including the paper insulation. This is also possible during under-load operation.

TOUCH
Stationary oil regeneration in an EOS® production plant
Stationary oil regeneration in an EOS® production plant

Your used transformer oil is collected by us and regenerated in one of our Electrical Oil Services production plants.

THE FOLLOWING VIDEO SHARES THE BENEFITS OF THE EOS® CLOSED LOOP MODEL

Electrical-Oil-Services-EOS_Oil-Regeneration_MG_4089_10x15cm-1536x1024

"Whether regenerated on site or via our static plants, the result is a high-quality insulating oil that is recycled to as-new quality according to IEC 60296:2020 Type B standard. Our EOS Premium conserves valuable resources."

Kilian_Gerbl_Electrical_Oil_Services_560x560px_221024
Kilian GerblHead of Sales EEA
Sustainable alternativeᅵRecommended for maintenance ᅵCertified as new

EOS® PREMIUM INSULATING OIL

high_voltage_AdobeStock_394929316_copyright_gui_yong_nian_1100x620px_221129

Read more about our IEC 60296:2020 recycled insulating oil in this blog:
→ For transformers: Recycled EOS® Premium insulating oil proves its worth

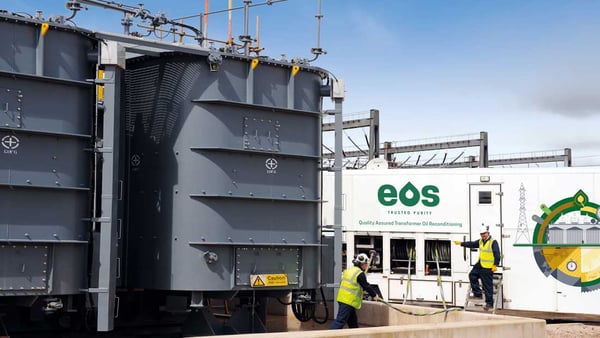

Electrical_Oil_Services-EOS_MPU-DSC_7130_02vh_aufbereitet_1100x620px_221129

Find out more about the technical specifications and more here:
→ EOS® Premium - Recycled Insulating Oil

EOS® BEST PRACTICE

Find out more about our work on these pages:

calculating_AdobeStock_262927984_mit_copyright_NINENII_1100x620px_230622

Steel production
Almost like NEW - investing in 20 neglected transformers
Objective: Ensure reliable production by extending transformer lifetime
Solution: EOS® insulating oil regeneration
Step-by-step deep cleaning for twenty 66 kV transformers

recycling_AdobeStock_66607226_mit_copyright_mnimage_1100X620px_220213

Combined heat and power (CHP) plant
Remove potentially corrosive sulphur from 230,000 litres of transformer oil
Objective: To remove the additive from the 1990s called DBDS
Solution: EOS® insulating oil regeneration
A total of 50 days of thorough deep cleaning to reduce the DBDS content from 100 ppm to <5ppm

Electrical-Oil-Services-EOS_Oil-Regeneration_MG_4089_10x15cm-2000x1333-4

Energy supplier
Extend the service life of transformers by 15 years without high investments
Objective: To deep-clean the insulating oil systems and to remove acids and sludge
Solution: EOS® develops refurbishment strategy for insulating oil regeneration during operation
Start of an era: Making sustainable asset management for transformers possible

Electrical_Oil_Services-EOS_4N9A4303_1100x620px_230907_retuschiert (1)

Grid operator
Filling a 132 kV transformer after maintenance work
Objective: Remove contamination and achieve maximum dryness of the insulating oil
Solution: EOS® insulating oil processing
Restore safety with the Mobile Processing Unit (MPU) after warning message

electricity_iStock-1208308646_mit_copyright_aydinmutlu_1100x620px_221128

Distribution system operator
Finding a solution when the newly ordered transformer is delivered late
Objective: Put the decommissioned transformer back into operation
Solution: EOS® insulating oil treatment
Drying the oil in the old transformer with extensive vacuum/heat treatment

Electrical-Oil-Services-EOS-Mobile-Processing-at-Customers-Transformer-2000x1362

Transformer OEM
Although stored in a dry atmosphere for a long time, the new transformer need to be installed in gas and steam turbine (CCGT) power plants
Objective: To generate a vacuum of less than 1 mbar at low cost and then fill the transformer with insulating oil
Solution: EOS® Mobile Vacuum Unit (MVU) and Mobile Processing Unit (MPU)
Enable cost-effective transformer installation

engineer_inspect_the_electrical_systems_AdobeStock_523500613_mit_copyright_andrew_shots_1100x620px_230424

Steel production
Which transformer first? Prepare a professional transformer management system
Objective: Organise monitoring for each individual transformer at the production site to avoid failures
Solution: EOS® develops customised test procedure for regular sampling
Classify transformers according to importance for scheduled transformer oil analyses

Electrical_Oil_Services-EOS_MG_5293-02_1100x620px_221129

Large power plant
Replace a 275 kV generator transformer and store the insulating oil temporarily
Objective: To store the company's own transformer oil for later re-filling into the new transformer
Solution: EOS® combines Mobile Processing Unit (MPU) and laboratory services with tanker lorries and storage tanks
Oil transport and storage off-site including consistent oil quality monitoring

recycling_AdobeStock_66607226_mit_copyright_mnimage_1100X620px_220213

Aluminium company
Sustainably remove 150,000 litres of insulating oil from decommissioned factory
Objective: Remove the insulating oil from the transformers and save the oil
Solution: EOS® organises and monitors the draining of the insulating oil in order to recycle it
Recycling of transformer oil: Collecting the used oil, improve the quality and return the oil to the market as recycled insulating oil

Electrical_Oil_Services-EOS_4N9A4303_1100x620px_230907_retuschiert (1)

Distribution grid operator
25,000 litres of insulating oil from the main tank of a 132 kV transformer temporarily stored on site
Objective: To repair tap changers in an ecologically sensitive area and put them back into operation quickly after filling
Solution: EOS® insulating oil processing after interim storage of the transformer oil in an oil-rinsed, certified tanker truck
Insulating oil storage and 2-fold circulation directly and promptly on site
